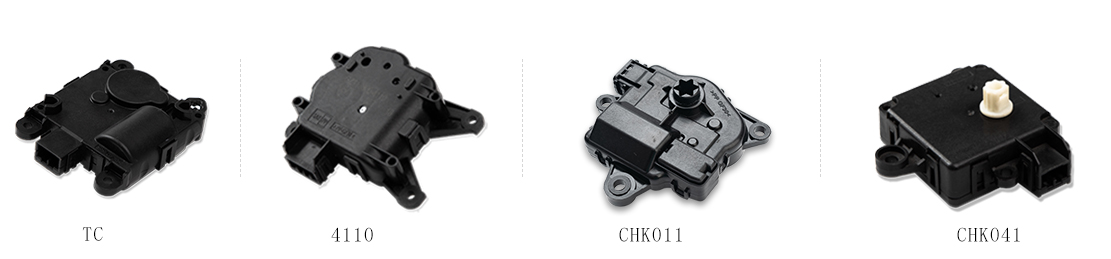

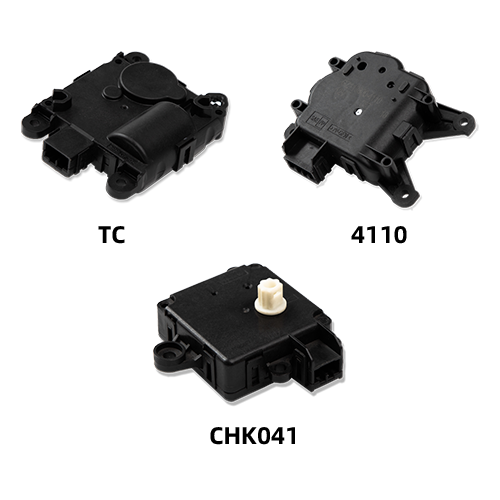

Car air conditioner damper actuator


항목

규격

Rated Voltage

12VDC

24VDC

Voltage Range

8~16VDC

16~24VDC

Load Torque

0.15N.m

0.15N.m

Swing Speed

5±1rpm

5±1rpm

Load Current

0.06±0.04A

0.025±0.02A

Stall Torque

1.1N.m以上

1.1N.m以上

Stall Current

0.4A以下

0.4A以下

Reverse Torque

1.1N.m以上

1.1N.m以上

PTM Linearity

±1.63%

±1.63%

Noise at 10cm

Max.44dBA(0.45N.m)

Max.44dBA(0.45N.m)

      * 고객사 요구 사양에 따라 개발
